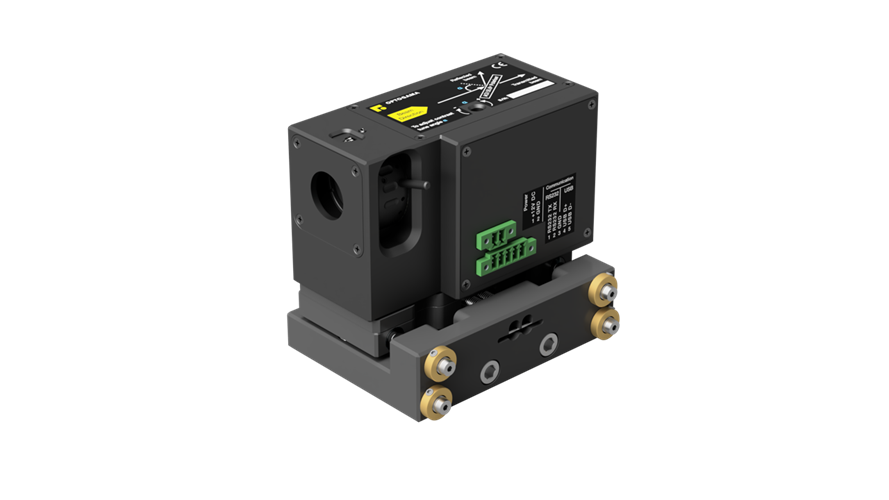

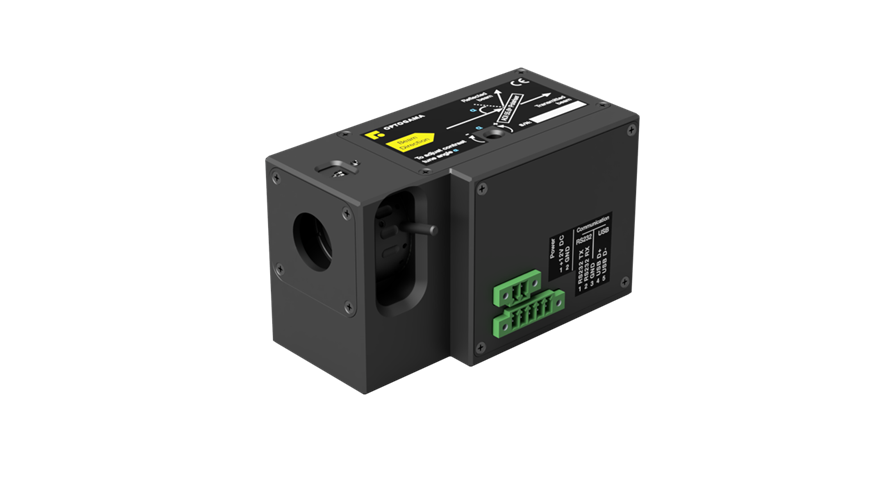

Flat top converter FTC
Flat top converter unit is all in one motorised solution for a Gaussian beam transformation to a Flat-Top (Top Hat) beam. Any focusing element is needed. The beam profile remains Flat-Top shape along optical axis. The device consist of quartz wave-plate, space-variant wave-plate and a high contrast polariser. The FTC is produced in the UV, visible and NIR spectral ranges, from 250 nm to 2000 nm.
Main features
- Quick change between Gaussian and Flat-top beam
- The beam profile remains Flat-Top shape along optical axis
- Integrated controller
- Designed according your laser specs
- Clear aperture up to 15 mm
- Quick switching time - 0.2 sec
- High damage threshold up to 10J/cm2 (10 ns @ 1064 nm)
- Conversion efficiency up to 70% (while on Flat-Top mode)
Main features
Flat top converter unit is all in one motorised solution for a Gaussian beam transformation to a Flat-Top (Top Hat) beam. Any focusing element is needed. The beam profile remains Flat-Top shape along optical axis. The device consist of quartz wave-plate, space-variant wave-plate and a high contrast polariser. The FTC is produced in the UV, visible and NIR spectral ranges, from 250 nm to 2000 nm.The RANGER laser operating at a 1.54 µm wavelength can provide a pulse energy of up to 1.5 mJ, and it achieves a repetition rate ranging from 5 to 10 Hz.
Specification
- Quick change between Gaussian and Flat-top beam
- The beam profile remains Flat-Top shape along optical axis
- Integrated controller
- Designed according your laser specs
- Clear aperture up to 15 mm
- Quick switching time - 0.2 sec
- High damage threshold up to 10J/cm2 (10 ns @ 1064 nm)
- Conversion efficiency up to 70% (while on Flat-Top mode)
Application
- Precise laser micromachining
- Life sciences
- Research
